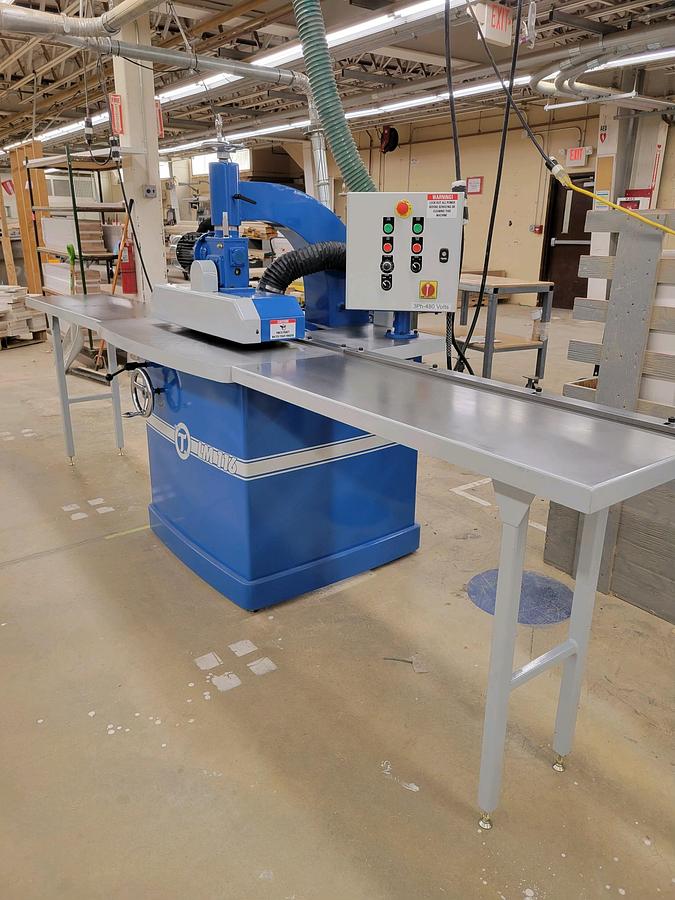

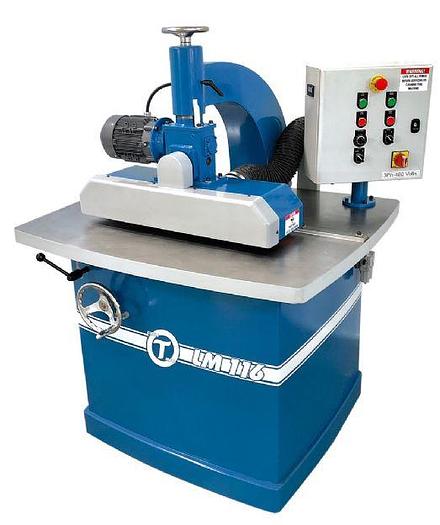

Lock Miter Machine Circle T Manufacturing Model #Easy Lock LM116 Lock Miter machine, 5HP, 230 volt, 3-phase machine

MODEL LM116

Easy Controls + Easy Setup + Easy Changes = Easy Lock Miter Joints!

Our Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use our machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!

​

• A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
• No more downtime setting up and changing out your shaper!!!
• No more running pieces on their side!!!
• Less gluing and clamping time!!!
• Upgrade to our EASY LOCK MITER LM116

APPLICATION SPECIFICATIONS:

• Maximum Material Thickness: 1"
• Minimum Material Thickness: 1/2"
• Minimum Material Width: 1-1/4"
• Minimum Material Width (2-Sided): 2"
• Minimum Material Length: 12"
• Capable of Machining Angles from 90 - 30 Degrees (Finish Angle)

​

DRIVE PACKAGE SPECIFICATIONS:

• Spindle Motor: 5 HP
• Feed Motor: 0.5 HP
• Spindle Diameter: 1-1/4"
• Spindle Speed: 8,200 RPM
• Variable Speed 11-Roll Positive Grip Feeder

​

UTILITY REQUIREMENTS:

• Dust Collection Requirements: 670 CFM, 4" Outlet
• Pneumatic Requirements: 100 PSI .5 CFM
• 25 AMP Disconnect at 480V 3phase

​

DIMESION SPECIFICATIONS:

• Table Size: 40" x 47"
• Footprint: 42"L x 54"W x 60"H
• Shipping Dimensions 67"L x 48"W x 79"H

​

SHIPPING WEIGHT: 1900lbs

NET WEIGHT: 1600lbs
