SCM Group SCM SI400Nova Sliding Table Saw

Sliding Table Saw, 10'6" New SCM Model #SI400Nova Heavy Duty Sliding Table Saw machine, 9HP Main Motor, 1HP Scoring Motor, 10'6" Capacity, 230 volt, 3-phase machine.

Standard Features

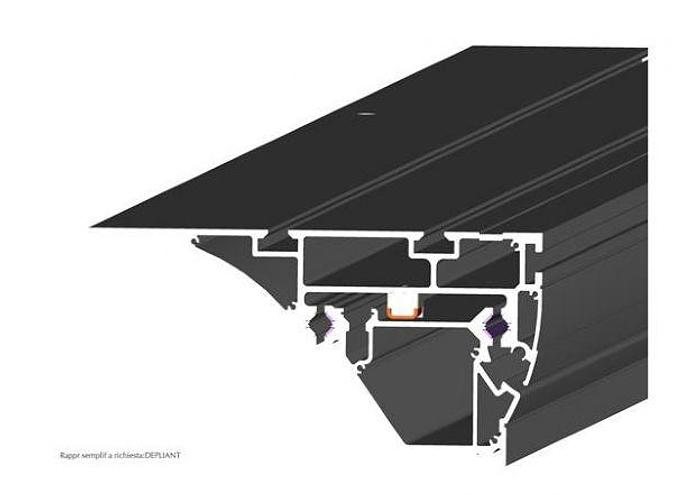

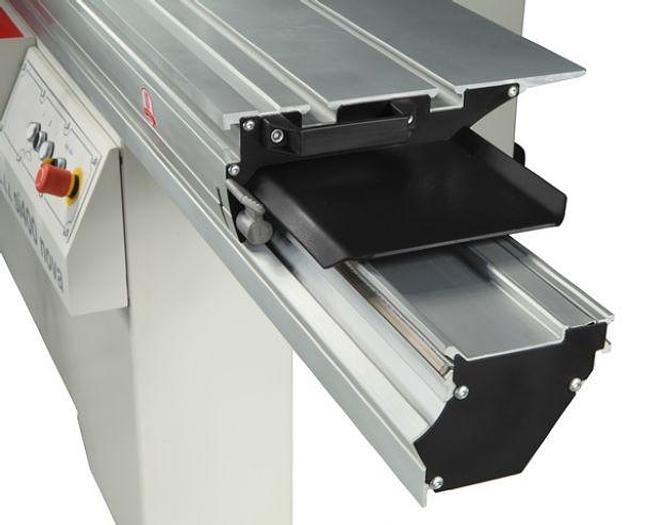

• Anodized aluminum sliding table with hardened steel guides
• Self Braking Motor
• Separate 1 hp scoring motor
• Tilting arbor from 0 to 45 degrees
• Mechanical tilt indicator
• External scoring saw adjustment with stops
• Slider locks anywhere to the right of the blade

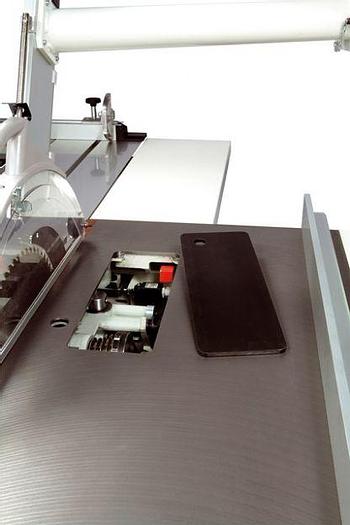

• Overhead mounted blade guard with dust outlet

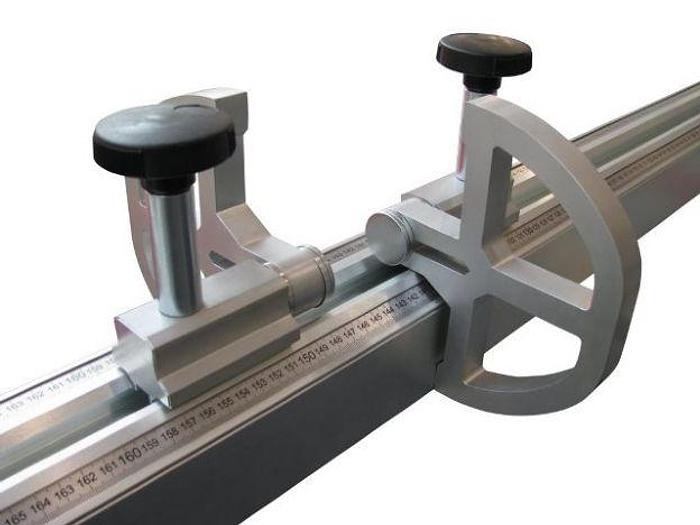

• Heavy industrial aluminum extrusion crosscut fence with flip stops
• "EZ Dial" Adjustable split scoring blade assembly
• Standard 1 year warranty (10 years on table guideway tolerances)
• Separate hand wheels on front for lifting and tilt of blade
• Eccentric Clamp
• Electrical control panel tilted 25 deg. for ergonomics

Specifications

Main Motor Horsepower9 HPScoring Motor Horsepower1 HPFixed Table Size41" x 25"Height of Worktable34.5"Rip Capacity51"Max Length of Crosscut with Scoring126"Main Blade Diameter / Arbor16" / 1"Scoring Blade Diameter / Arbor5" / 3/4"Arbor Speed - main / scoring4,000 / 8,500 RPMDust Outlets - main / overarm guard5" / 3.25"Depth of Cut - 0° / 45°5.5" / 3.8"Net Weight2,200 lbsElectrical Requirements36 AMPS @ 230v, 3 phDust Extraction1100 CFM
